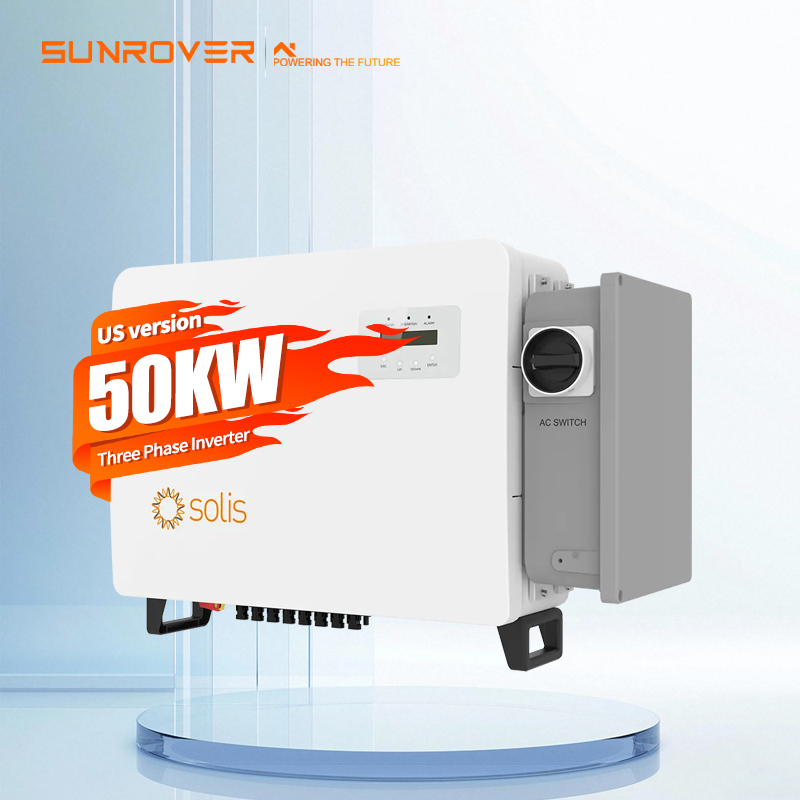

Solis Three Phase Grid-Tied 50KW US Inverter
Product Description
Technical Features:
Rated Power Output: Ranges from 25kW to 60kW, catering to a wide variety of commercial solar projects.
Phase: Three-phase, ensuring compatibility with commercial and utility grid infrastructure.
Efficiency: High conversion efficiency, typically above 98%, maximizing solar energy utilization.
MPPT Voltage Range: Wide MPPT voltage range, accommodating various solar panel configurations and maximizing energy harvest.
Protection Features: Comprehensive protection mechanisms, including over-voltage, under-voltage, short circuit, and over temperature protections, ensuring system safety and longevity.
Communication: Equipped with multiple communication options (such as WiFi, Ethernet, RS485) for seamless integration with monitoring platforms and easy management of solar assets.
Compliance: Fully compliant with US standards, including UL1741 and IEEE 1547, ensuring safe and reliable operation in the United States.
Specification
| DATASHEET | S6-GC(25-60)K-US |
| Models | 50K |
| Input DC | |
| Max. input voltage | 1000 V |
| Rated voltage | 720 V |
| Start-up voltage | 180 V |
| MPPT voltage range | 180-1000 V |
| Max. input current | 4*40 A |
| Max. short circuit current | 4*63 A |
| MPPT number/Max. input strings number | 4/8 |
| Output AC | |
| Rated output power | 50 kW |
| Max. apparent output power | 50 kVA |
| Max. output power | 50 kW |
| Rated grid voltage | 3Ф/PE, 480 V |
| Rated grid frequency | 60 Hz |
| Max. output current | 60.1 A |
| Power factor | >0.99 (0.8 leading - 0.8 lagging) |
| THDi | <3% |
| Efficiency | |
| Max. efficiency | 98.80% |
| CEC efficiency | 98.30% |
| Protection | |
| DC reverse-polarity protection | Yes |
| Short circuit protection | Yes |
| Output over current protection | Yes |
| Surge protection | DC Type II / AC Type II |
| Grid monitoring | Yes |
| Anti-islanding protection | Yes |
| Temperature protection | Yes |
| Strings monitoring | Yes |
| I/V Curve scanning | Yes |
| Integrated AFCI | Yes |
| Integrated PID recovery | Optional |
| Integrated DC switch | Yes |
| Integrated AC switch | Yes |
| General Data | |
| Dimensions (W*H*D) | 30.9*21.6*12.6 in (784*549*320 mm) |
| Weight | 108.7 lbs (49.3 kgs) |
| Topology | Transformerless |
| Self-consumption (night) | <1 W |
| Relative humidity | 0-100% |
| Operating ambient temperature range | -13°F to 140°F (-25°C to 60°C) |
| Ingress protection | TYPE 4X |
| Noise emission (typical) | ≤55 dB(A) |
| Cooling concept | Natural convection |
| Max. operation altitude | 13,120 ft (4000 m) |
| Compliance | UL1741SB, IEEE 1547-2018, UL1699B, UL1998, FCC Part15 ClassB, California Rule 21, Heco Rule 14H, NEC 690.12-2020, CAN/CSA C22.2107.1-1 |
| Features | |
| DC connection | MC4 connector |
| AC connection | OT terminal (4 AWG to 3/0 AWG) |
| Display | LCD |
| Communication | Modbus RTU (Sunspec compliant), RS485, Optional: Cellular, Wi-Fi |

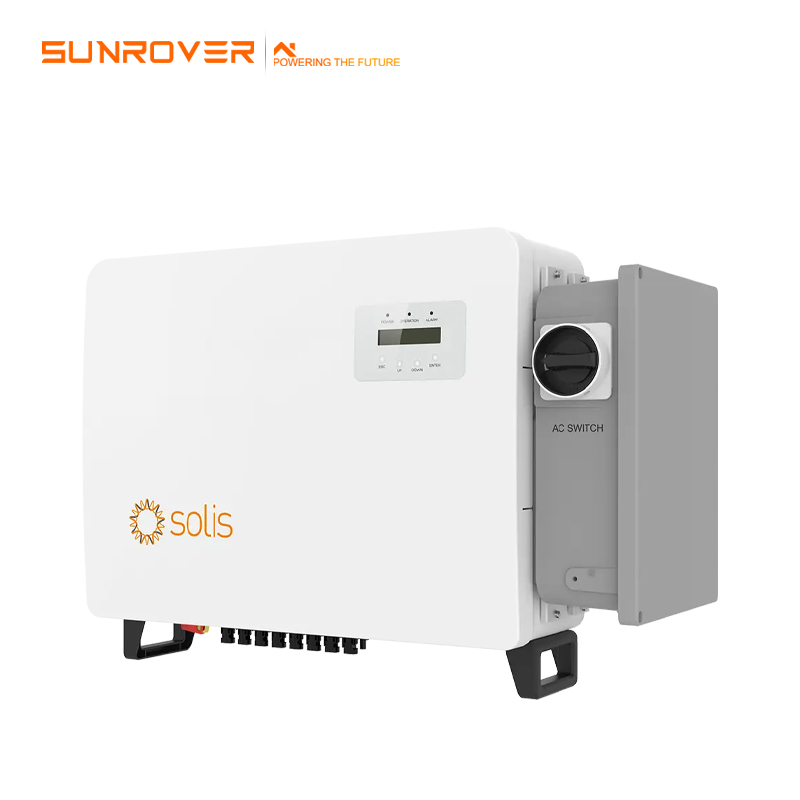

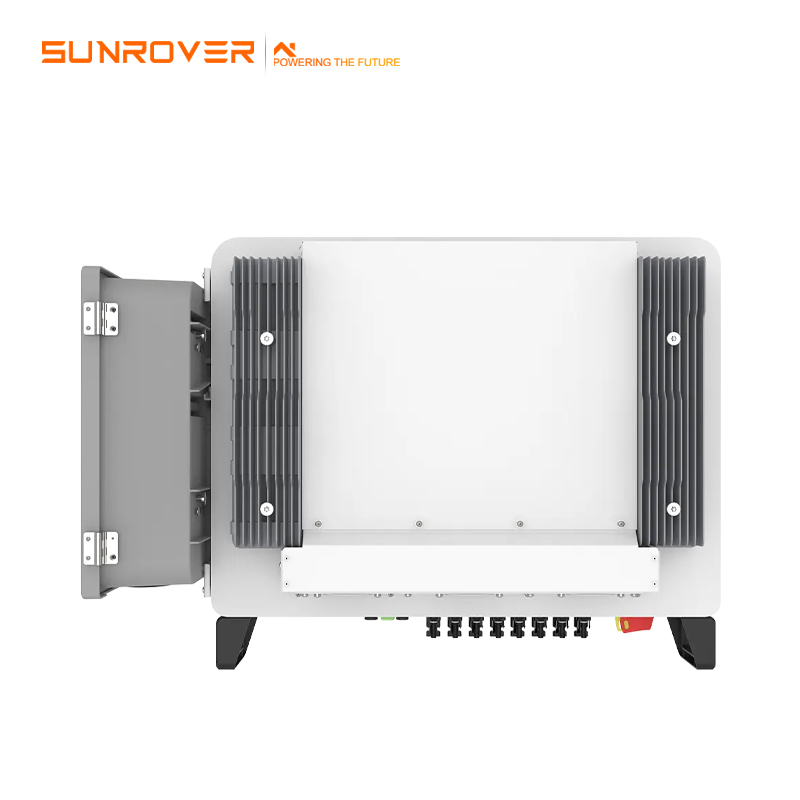

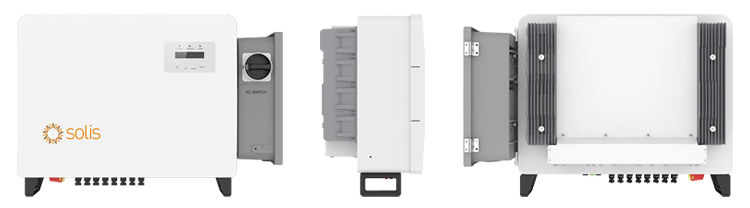

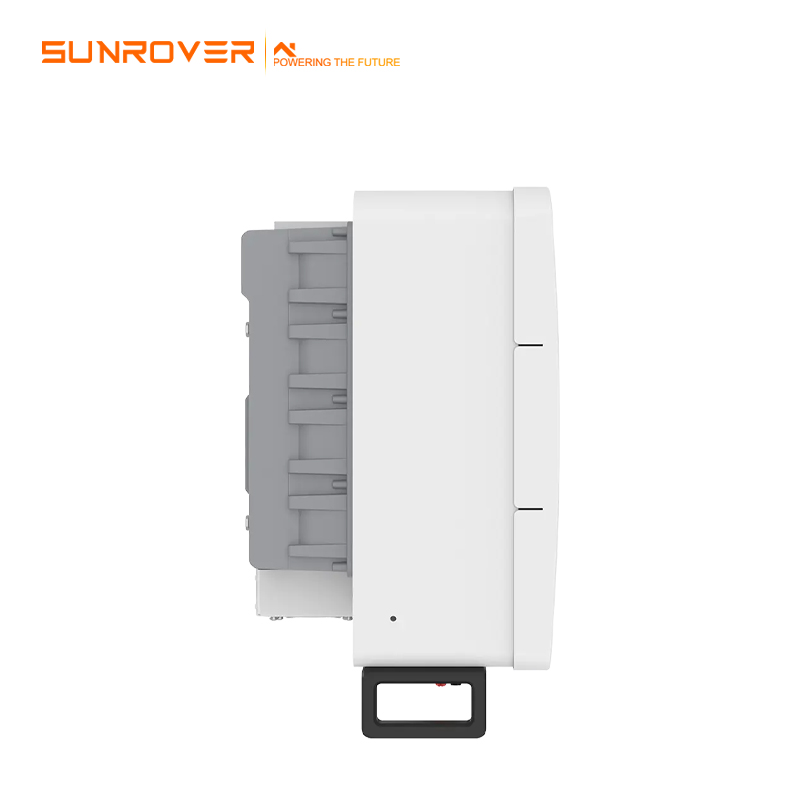

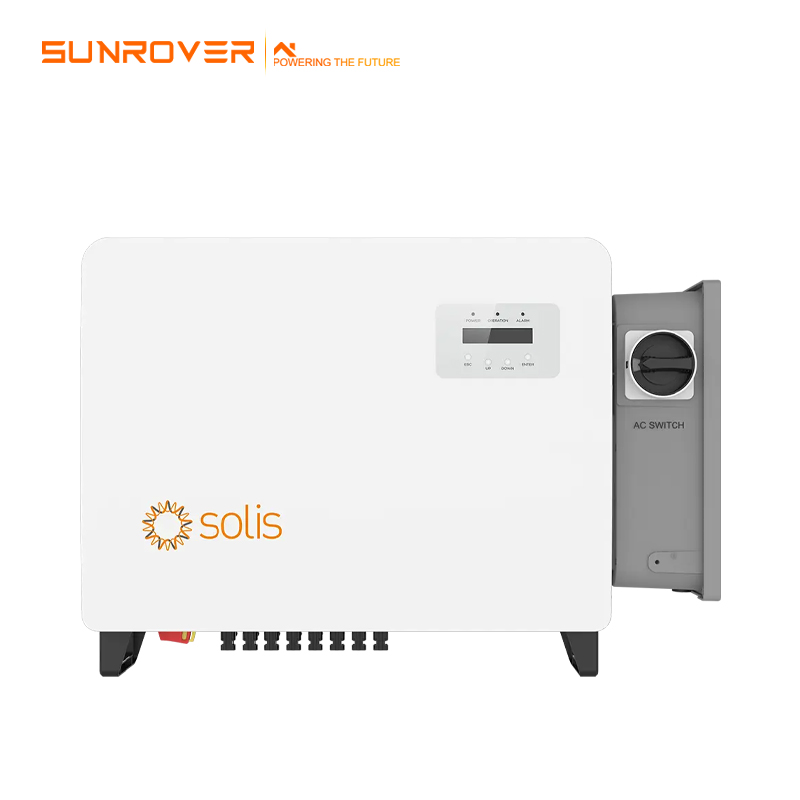

Product Display
Key Features:
Efficient
-Max. efficiency 98.8% (CEC efficiency 98.3%)
-String current up to 20A
-4 MPPT design, supports multiple orientation system design
-Night time PID recovery function, increases overall system yield (optional)
-Wide voltage range and low startup voltage
Smart
-Equipped with external power control interface, supporting zero output power control
-Intelligent string monitoring, smart I-V curve scan
-Supports RS485, Ethernet, WiFi, Cellular
-Scan to register on SolisCloud, supports remote upgrade and control
Safe
-Type 4X, C5 Anti-Corrosion Level
-AFCI protection, proactively reduces fire risk
-Intelligent redundant fan-cooling
-Integrated module level rapid shutdown transmitter
-High quality components from globally recognized suppliers
Economic
-1.5 DC/AC ratio
-Supports high power modules for lower installation costs
Packing & Delivery
Project Cases
Ordering: S6-GC(25-60)K-US
For more information, including ordering any of our integrated rapid shutdown and optimizer options, please see the datasheet and the compatibility list for reference.
