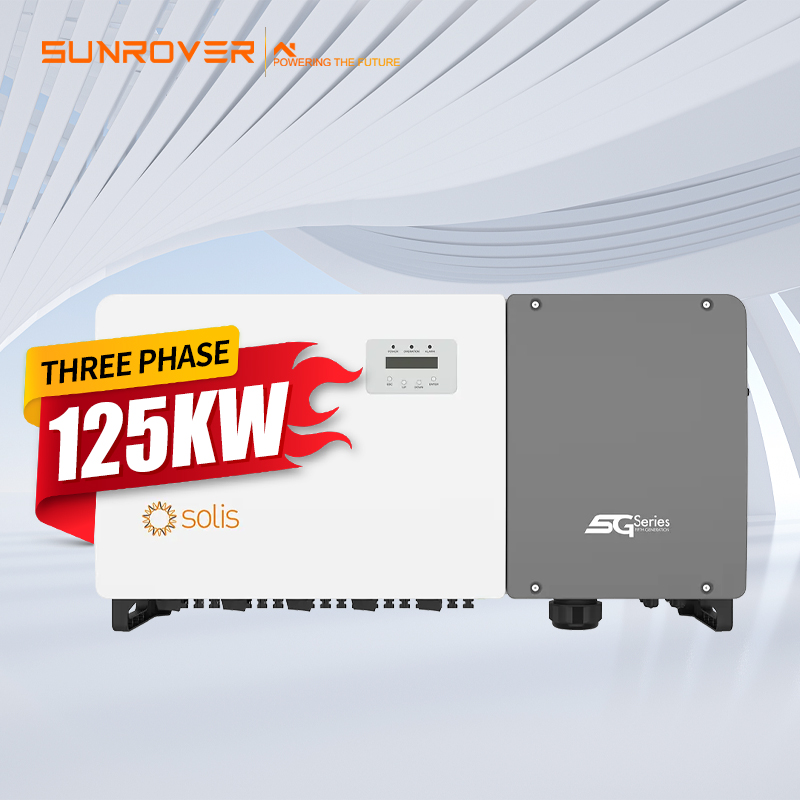

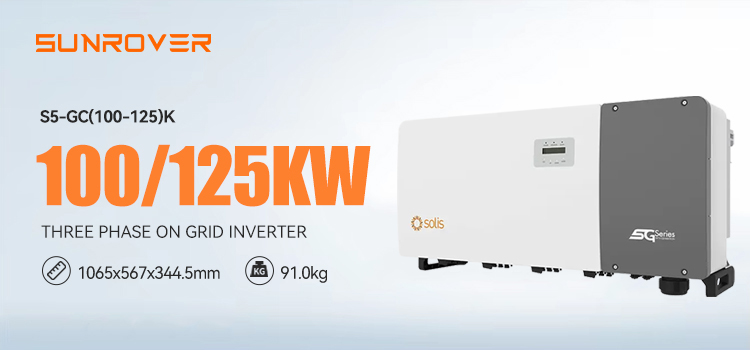

Solis Three Phase Grid-Tied 125K-HV EU Inverter
Product Description
S5-GC(100-125)K three-phase series string inverter adopt 10 MPPT design to provide a more flexible configuration scheme with a smaller environmental impact rate and higher generation efficiency. Anti-resonance, supporting over 6MW paralleled in one transformer, Strings intelligent monitoring, Smart I-V Curve Diagnosis supported
Specification
| DATASHEET | S5-GC(100-125)K |
| Models | 125K-HV |
| Input DC | |
| Max. input voltage | 1100 V |
| Rated voltage | 720 V |
| Start-up voltage | 195 V |
| MPPT voltage range | 180-1000 V |
| Max. input current | 10*32 A |
| Max. short circuit current | 10*40 A |
| MPPT number/Max. input strings number | 10/20 |
| Output AC | |
| Rated output power | 125 kW |
| Max. apparent output power | 137.5 kVA |
| Max. output power | 137.5 kW |
| Rated grid voltage | 3/PE, 480 V |
| Rated grid frequency | 50 Hz / 60 Hz |
| Rated grid output current | 150.4 A |
| Max. output current | 165.4 A |
| Power factor | >0.99 (0.8 leading - 0.8 lagging) |
| THDi | <3% |
| Efficiency | |
| Max. efficiency | 99.00% |
| EU efficiency | 98.60% |
| Protection | |
| DC reverse-polarity protection | Yes |
| Short circuit protection | Yes |
| Output over current protection | Yes |
| Surge protection | DC Type II / AC Type II (AC Type I optional) |
| Grid monitoring | Yes |
| Anti-islanding protection | Yes |
| Temperature protection | Yes |
| Strings monitoring | Yes |
| I/V Curve scanning | Yes |
| Integrated AFCI 2.0 | Optional |
| Integrated PID recovery | Optional |
| Integrated DC switch | Yes |
| Integrated AC switch | Optional |
| General Data | |
| Dimensions (W*H*D) | 1065*567*344.5 mm |
| Weight | 91 kg |
| Topology | Transformerless |
| Self-consumption (night) | <2 W |
| Operating ambient temperature range | -30 ~ +60°C |
| Relative humidity | 0-100% |
| Ingress protection | IP66 |
| Cooling concept | Intelligent redundant fan-cooling |
| Max. operation altitude | 4000 m |
| Grid connection standard | VDE-AR-N 4105, VDE-AR-N 4110, VDE V 0124, VDE V 0126-1-1, UTE C15-712-1, NRS 097-1-2, G98, G99, EN 50549-1/-2, RD 1699, TOR, UNE 206006, UNE 206007-1, CEI 0-21, IEC61727, DEWA |
| Safety/EMC standard | IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4 |
| Features | |
| DC connection | MC4 connector |
| AC connection | OT terminal (max. 185 mm²) |
| Display | LCD |
| Communication | RS485, Optional: Wi-Fi, GPRS, PLC |

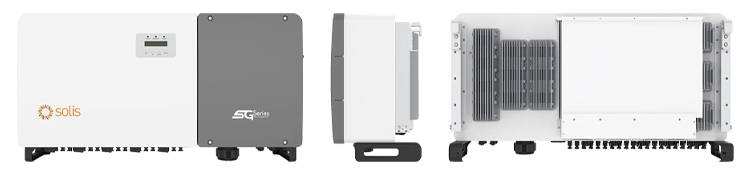

Product Display
1. Max. input current is 16A for 182mm module.
Perfect fit for 182 components and larger current components to reduce power loss and bring more than 3.7% benefits to customers per year.
2.Support 2 backup control for load shielding during off grid mode.
Flexible load configuration ensures stable power supply for critical loads
Customers can remotely control the turning on and off of backup port and generator port loads through Soliscloud platform.When the power grid is down, the noncritical loads at the generator port can be turned off to ensure that all the energy from the PV and battery is supplied to the critical loads to ensure the stable operation of the critical loads.
3. Support generator and inverter load at the same time with a stronger system load capacity
Stronger load capacity
It supports generator and inverter to carry load at the same time, which makes the system carrying capacity stronger. When the PV power or battery SOC is low, it can still carry a maximum loads.
Packing & Delivery

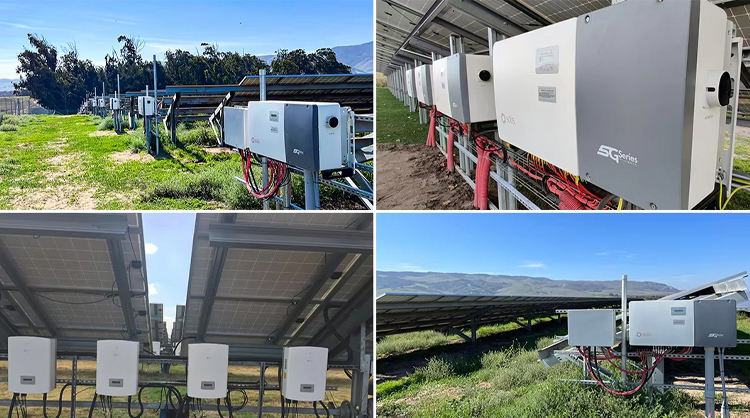

Project Cases
4.Good adaptability to weak power supply
Strong weak arid adaptablity, when the grid or generator frequency and voltage instability and fluctuations, the inverter can still be stable with the load, there will be no load voltage fluctuations and other lights ficker phenomenon.
5.Battery reserve function in multiple scenarios
6. lP66 protection level
7. Support LCD+ Bluetooth, and provide 1V1 dedicated Pad, make the interaction more friendly.
8. Battery-friendly, real-time monitoring of battery status, remote upgrade of battery firmware, and battery heal function to prolong battery life.
9.Compatible with multiple brands of lithium battery models, and add quick setting options, Simpler application.
11.Support multiple generator access, with GEN access detection and min-power judgment
12.Using Soliscloud maintain control
