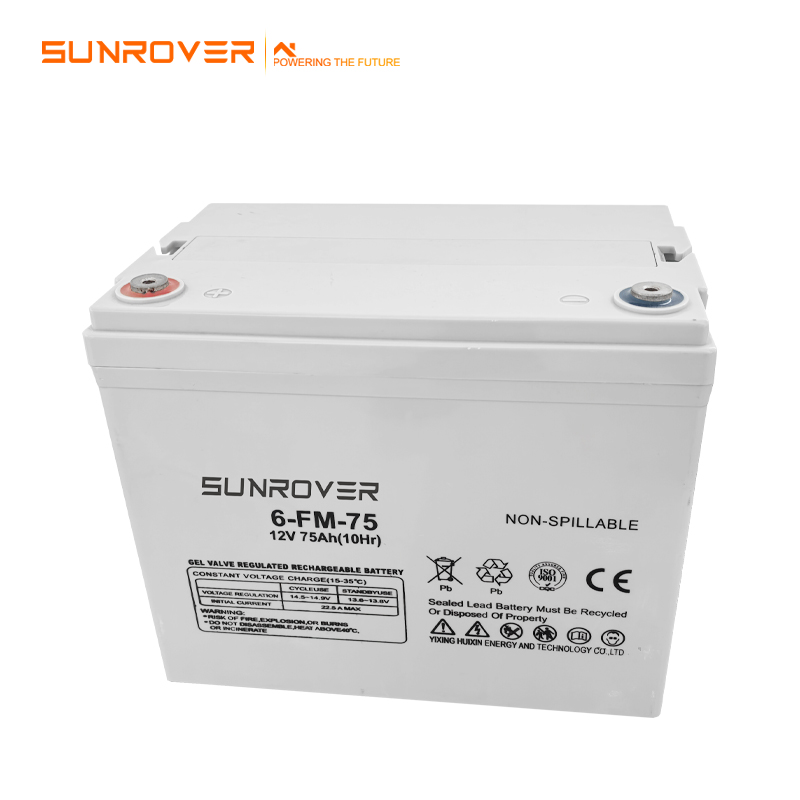

Solar Lead-Acid Batteries 12V 75Ah Gel Battery for Solar Panels
Product Description
Batteries are designed to be deeply discharged and recharged hundreds of times. They are designed and built differently than traditional flooded batteries. Batteries are sealed lead-acid batteries made with Absorbed Glass Mat (AGM) technology. The electrolyte is absorbed into the fiber separator material rather than in free-flowing liquid form. They use more lead, heavier plates, and other proprietary materials that enable them to deliver more power and capacity over many life cycles.
Specification
| Nominal Voltage | 12V | ||
| Nominal Capacity (10 hour rate) | 75Ah | ||
| Capacity 25℃(77°F) |
20 hour rate (3.89A) | 87.8Ah | |
| 5 hour rate (12.8A) | 69.0Ah | ||
| 1 hour rate (46.6A) | 49.6Ah | ||
| Internal Resistance | Full Charged Battery 25℃≤6.5mΩ | ||
| Capacity affected by Temperature (10 hour ) |
40℃ (104°F) | 102% | |
| 25℃ (77°F) | 100% | ||
| 0℃ (32°F) | 85% | ||
| -15℃ (5°F) | 65% | ||
| Self-Discharge 25℃(77°F) Capacity |
after 3 month storage | 90% | |
| after 6 month storage | 80% | ||
| after 12 month storage | 62% | ||
| Charge (Constant Voltage) 25℃ (77°F) |
Float | Initial Charging Current Less than17.5A Voltage 13.6-13.8V |
|
| Cycle | Initial Charging Current Less than17.5A Voltage 14.4-14.9V |
||

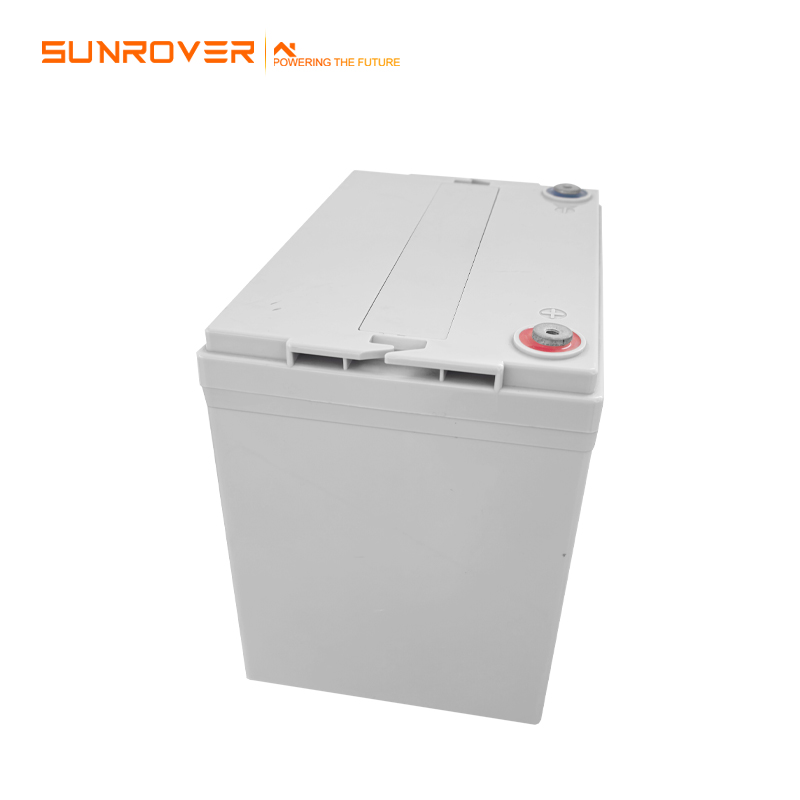

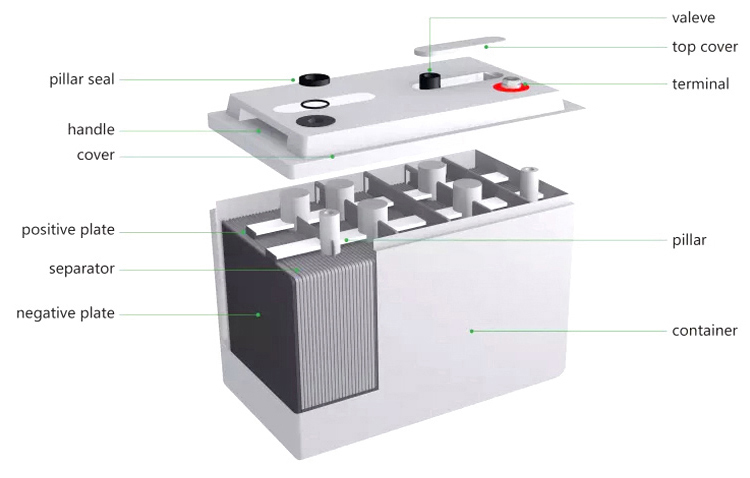

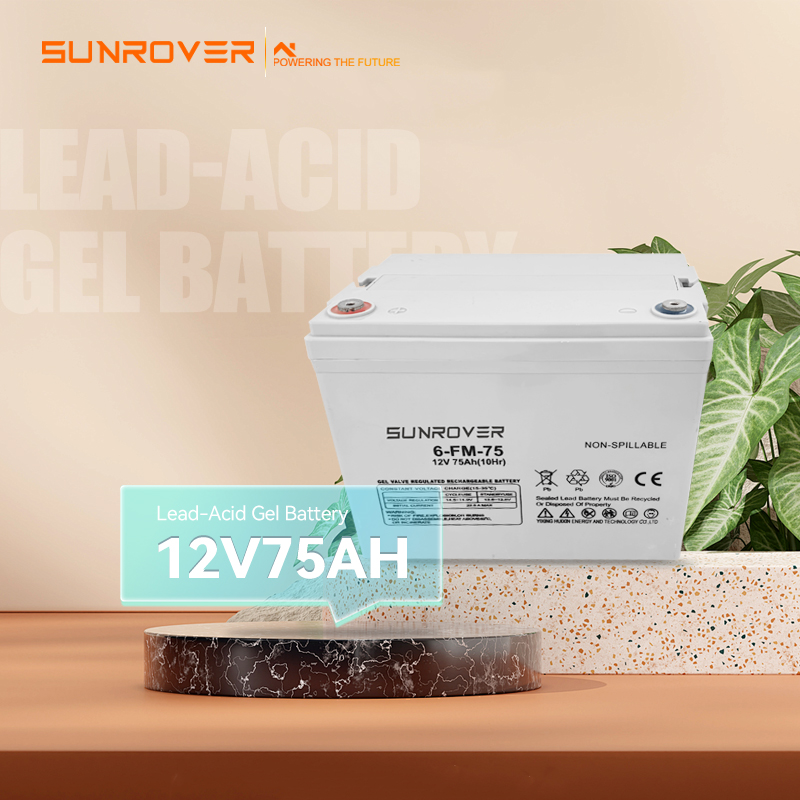

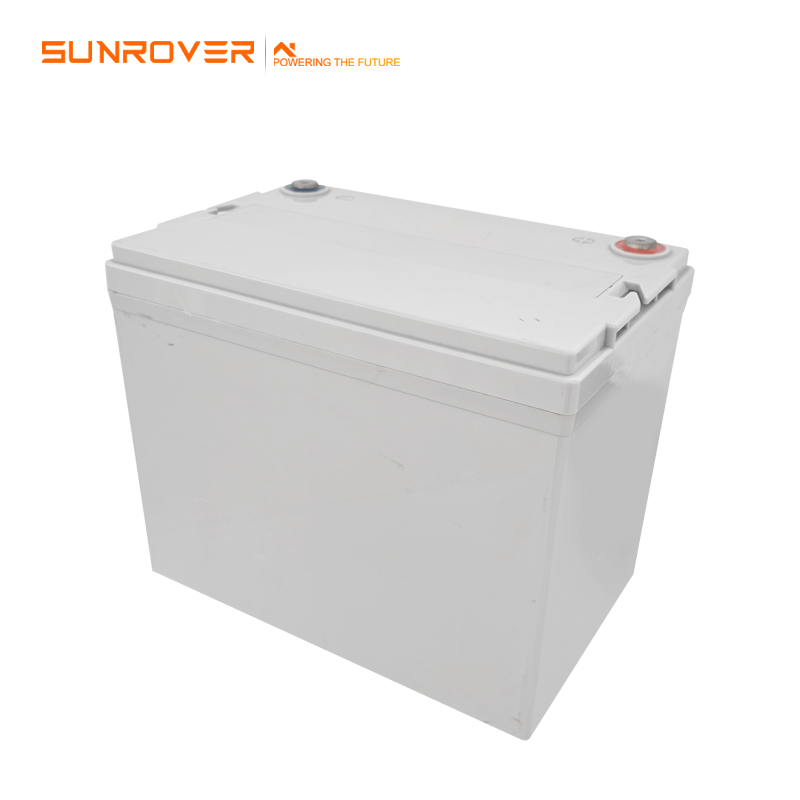

Product Display
Key Features :
♦Gelled electrolyte made by mixing sulfuric acid with silica fume.
♦The electrolyte is gel like ,immobile and does not leak ,enabling uniform reaction of each part of the plate .
♦High rate discharge performance due to tight assembly technology
♦Strong heat dissipation and wide operating temperature range
♦Avoid acid mist being separated out , environment friendliness
♦Efficient venting system release excessive gas automatically
Packing & Delivery

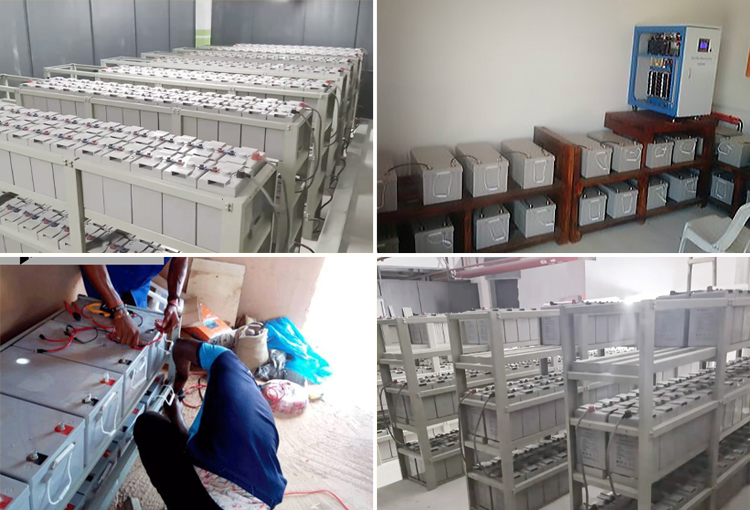

Project Cases
Applications :
♦EPS and UPS battery backup
♦Solar and wind energy storage system
♦Telecommunication Equipment
♦Power plant and transmission system
♦Signal system , emergency lighting system , security system
