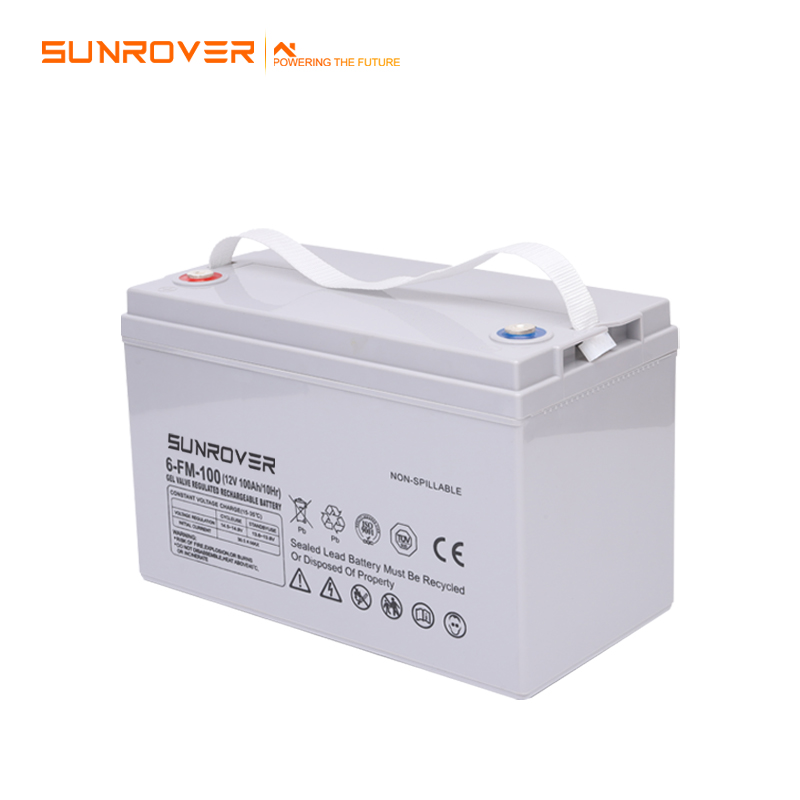

High Power 12V 100Ah for Solar System/Power Battery Lead Acid Battery
Product Description
The correct ingredients produce outstanding characteristics:
High cycle
Above average, charging and discharging cycles
High durability
Top-Quality materials and careful processing
Low Self-discharge
Ideal material-coordination for a maximum performance
High Capacity and Efficiency
High Capacity and Efficiency Low internal resistance for high discharge current
Charged Batteries
Accumulators in general are fully-charged on delivery
Specification
| Characteristics | |||
| Nominal Voltage | 12V | ||
| Nominal Capacity (10 hour rate) | 100Ah | ||
| Capacity 25℃(77°F) |
20 hour rate (5.55A) | 111.0Ah | |
| 5 hour rate (18.3A) | 91.5Ah | ||
| 1 hour rate (66.5A) | 66.5Ah | ||
| Internal Resistance | Full Charged Battery 25℃ | ≤5.0mΩ | |
| Capacity affected by Temperature (10 hour ) |
40℃ (104°F) | 102% | |
| 25℃ (77°F) | 100% | ||
| 0℃ (32°F) | 85% | ||
| -15℃ (5°F) | 65% | ||
| Self-Discharge 25℃(77°F) Capacity |
after 3 month storage | 90% | |
| after 6 month storage | 80% | ||
| after 12 month storage | 62% | ||
| Charge (Constant Voltage) 25℃ (77°F) |
Float | Initial Charging Current Less than25.0A Voltage 13.6-13.8V |
|
| Cycle | Initial Charging Current Less than25.0A Voltage 14.4-14.9V |
||
Product Display
High performance: The dense battery has high performance, requires no maintenance at all, has a low self-discharge rate and can maintain charge for a long time.
Accurate quality testing: The dense battery has undergone 100% accurate quality testing and has stable quality and high-reliability performance.
Battery Plates: The factory has the most complete battery plate models in China and can meet various customized needs of users.
Unique grid alloy formula and updated manufacturing technology: The dense battery adopts a unique grid alloy formula and updated manufacturing technology to ensure its performance and reliability.
Cycling use: In terms of cyclic use, dense batteries can reach 260 cycles under 100% deep discharge conditions and 500 cycles under 50% deep discharge conditions.
Packing & Delivery
Project Cases
Automated production line: Through advanced intelligent technology, the automated production of UPS batteries is realized. The company adopts the latest automated equipment and intelligent control systems to ensure efficient and stable production processes. From raw material input to finished product delivery, the intelligent system monitors in real time to ensure the consistency and reliability of product quality. Intelligent production not only improves production efficiency, but also greatly improves the stability of product quality. Minhua Power is committed to providing customers with high-performance, high-quality UPS battery solutions and leading the innovation and development of the industry.
One-stop energy storage base: professional research and development, manufacturing and sales of a full range of valve-regulated sealed lead-acid batteries and lead-acid battery plates. The products cover four major types: standby, starting, fixed and energy storage, with a total of more than 600 specifications and varieties, fully meeting the needs of different regions and various customers. Rich in categories and wide coverage, suitable for various application scenarios, with comprehensive product coverage, stable product quality, excellent technology and services, it has the ability to provide customers with diversified and high-quality battery solutions.
