10 Tips for Choosing the Best 24V Inverter
Choosing the right 24V inverter is not a small specification exercise. It affects battery life, appliance safety, runtime, noise, and long-term operating cost. The keyword Inverter 24v often describes many different products, from compact RV units to industrial power systems. Their internal designs can differ sharply.
The International Energy Agency’s Renewables 2024 report expects renewable capacity to expand substantially through 2030, increasing demand for dependable conversion equipment. The IEA PVPS Trends 2024 report also recorded more than 400 GW of new solar photovoltaic capacity installed globally in 2023. These figures show a broader shift toward distributed energy. However, solar growth does not guarantee that every inverter suits every battery bank. The wrong choice can cause voltage alarms, excessive heat, or disappointing runtime.
This guide presents 10 practical tips for choosing the best 24V inverter. It considers continuous wattage, surge capacity, waveform quality, efficiency, standby consumption, protection functions, cooling, certification, warranty, and supplier support. A 2,000-watt motor load may briefly demand several times its rated power. That detail matters. IEC 62109 safety principles and manufacturer test data provide useful reference points, but laboratory results rarely match a dusty campsite or a poorly ventilated cabinet. Real conditions vary. I have seen buyers focus on peak power while overlooking cable size and battery discharge limits. That mistake is easy to repeat. Careful comparison, realistic load calculations, and independent documentation create a more reliable decision. No checklist replaces testing, yet a disciplined process can prevent expensive surprises.
Establish 24V Battery Limits, Cable Sizing, and Load Demand (IEC 62109)
Tip 1: Establish the 24V battery limits before selecting an inverter. Check the battery’s continuous discharge current, peak current, operating voltage, and low-voltage cutoff. A “24V” battery may range from about 21V to 29V during normal use. The inverter must accept this entire range. Confirm these figures in the battery and inverter manuals, not only on sales pages.
Tip 2: Calculate real load demand, including startup surges. A 2,000W load draws roughly 83A at 24V, before efficiency losses. In practice, the battery may supply over 95A. Motors, pumps, and compressors can briefly demand two to seven times their running power. List every appliance, then add realistic simultaneous use. I have seen systems fail because a small pump was ignored. That mistake is easy to repeat.
Tip 3: Size cables for current, length, temperature, and allowable voltage drop. Use short, flexible cables with suitable insulation and overcurrent protection near the battery. At high current, even a modest resistance creates heat. For example, a long, undersized cable may cause nuisance shutdowns and damaged terminals. Follow recognized electrical practice and verify the inverter’s protective design against IEC 62109 requirements. IEC 62109 supports safety evaluation, but it does not replace correct installation. Leave room for ventilation, secure every connection, and recheck torque after initial operation. Some assumptions will be wrong; measured voltage and temperature matter more than neat calculations.
Size Continuous and Surge Power for Motors: Allow 2–7× Starting Current
A 24V inverter must handle a motor’s running load and its starting demand. Motor starting current can reach two to seven times the rated current, depending on motor design and load. U.S. Department of Energy motor-system guidance highlights this inrush problem, while IEC 60034-12 addresses motor starting performance and locked-rotor behavior. Do not size the inverter from the nameplate watts alone.
For example, a 1,200W motor draws about 50A at 24V before losses. With 90% inverter efficiency, the battery current approaches 56A. If startup reaches five times running current, the inverter may briefly face nearly 6,000W. Select at least 1,200W continuous output, then verify a surge rating near 6,000W for the required starting duration. Check the manual’s surge-time specification. A large wattage number is not enough.
Mechanical load matters. A pump starting against pressure may need more surge than an unloaded fan. Refrigeration compressors can also restart under difficult conditions. Field sizing often fails because users measure only steady current. A clamp meter helps, but it may miss a very short peak. I would allow the full two-to-seven-times range when motor data is unavailable, then confirm it through controlled testing. This is conservative, and sometimes excessive. Yet undersizing can cause voltage collapse, nuisance shutdowns, hot cables, or repeated failed starts. Battery capacity, cable length, fuse selection, and inverter peak-current limits must match the same calculation.
Compare Efficiency, Idle Draw, and Heat Derating; Target ≥90% Efficiency
Choosing the best 24V inverter starts with efficiency, not advertising claims. Target at least 90% efficiency at your usual load, not only at the rated peak. NREL’s inverter performance research shows that conversion efficiency often exceeds 95% near optimal loading, but drops during light-load operation. Test three points: 25%, 50%, and 100% load. Record battery voltage, output watts, input watts, and case temperature. Small errors matter.
Idle draw deserves equal attention. An inverter consuming 15 watts continuously uses about 131 kilowatt-hours yearly, even without powering equipment. The IEA 4E standby-power research identifies idle consumption as a persistent source of avoidable energy loss. Choose a unit with a clearly stated no-load figure, preferably below 1% of its rated output. Check whether sleep mode truly disconnects heavy circuits. Some controls remain active. That detail is easy to miss.
Heat changes the result. Measure output after one hour, with airflow restricted as it might be inside a cabinet. The U.S. Department of Energy’s appliance testing guidance emphasizes stable temperatures and repeatable operating conditions; inverter testing deserves the same discipline. Review the derating curve above 40°C, inspect fan behavior, and leave ventilation space around the heat sink. A device rated at 2,000 watts may deliver far less in a hot enclosure. I once trusted the nameplate too quickly. That was poor engineering judgment. Copper cable length, fuse losses, waveform quality, surge capability, and low-voltage shutdown also deserve comparison. A simple watt-hour meter can expose disappointing assumptions.
Choose Pure Sine Output and Verify Voltage Quality Below 5% THD
Choosing a 24V inverter starts with waveform quality, not maximum wattage. Pure sine output closely follows utility power and suits motors, medical equipment, chargers, and sensitive electronics. Modified sine output can create buzzing, extra heat, or unstable charging. IEEE 519-2022 recommends voltage total harmonic distortion below 5% for systems rated up to 1 kV. Treat that as a practical screening limit, not a decorative number.
Check the specification sheet carefully. Confirm continuous power, short-term surge capacity, idle consumption, low-voltage shutdown, cooling clearance, and battery compatibility. A 24V system can draw about 42 amps at 1,000 watts before losses. Thin cables then become a serious risk. Choose copper conductors with suitable insulation and keep connections short.
Verify efficiency at your normal load, not only at peak output. The IEC 62040-3 performance standard also emphasizes output behavior during changing loads, which many basic product sheets barely explain.
Ask for a measured THD result and its test conditions. Was it tested with a resistive load, a motor, or no load? The answer matters. A low reading without load may mislead. Use a calibrated power-quality analyzer when the application is critical. Check over-temperature, overload, short-circuit, and reverse-polarity protection. Certification to relevant electrical safety standards adds confidence, but it does not replace installation judgment. I have seen buyers focus on surge wattage and overlook voltage distortion. That decision deserves reconsideration. A quieter inverter is not automatically a cleaner one. Review IEEE 519-2022 and the manufacturer’s complete test report before purchase.
Confirm UL 458/IEC 62109 Safety, Protections, and Installation Compliance
Choosing a 24V inverter requires more than checking wattage. UL 458 applies mainly to power converters used in land vehicles and marine craft. IEC 62109-1 and IEC 62109-2 address power-converter safety in photovoltaic systems. Confirm the standard matches your application. A familiar logo is not proof.
Check the exact model certificate, revision, and test scope. Then verify overload, short-circuit, over-temperature, low-voltage, over-voltage, reverse-polarity, and ground-fault protection. Protection must work before a warm cable becomes a serious hazard. IEA PVPS reported over 400 GW of new solar capacity in 2023, increasing demand for dependable conversion equipment. Yet rapid market growth can encourage careless specification.
Installation compliance matters just as much. Size cables for continuous current, install the correct DC fuse, and keep connections tight. Provide ventilation around the inverter. Follow required clearances, grounding methods, disconnect locations, and enclosure ratings. Field inspections often find loose terminals and undersized conductors, not failed electronics. That is easy to miss. Review the manual against local electrical rules, because certification does not replace installation approval. I sometimes treat a clean datasheet as sufficient, but that assumption is weak. A safer review records ambient temperature, battery chemistry, peak load, cable length, and mounting conditions before purchase.

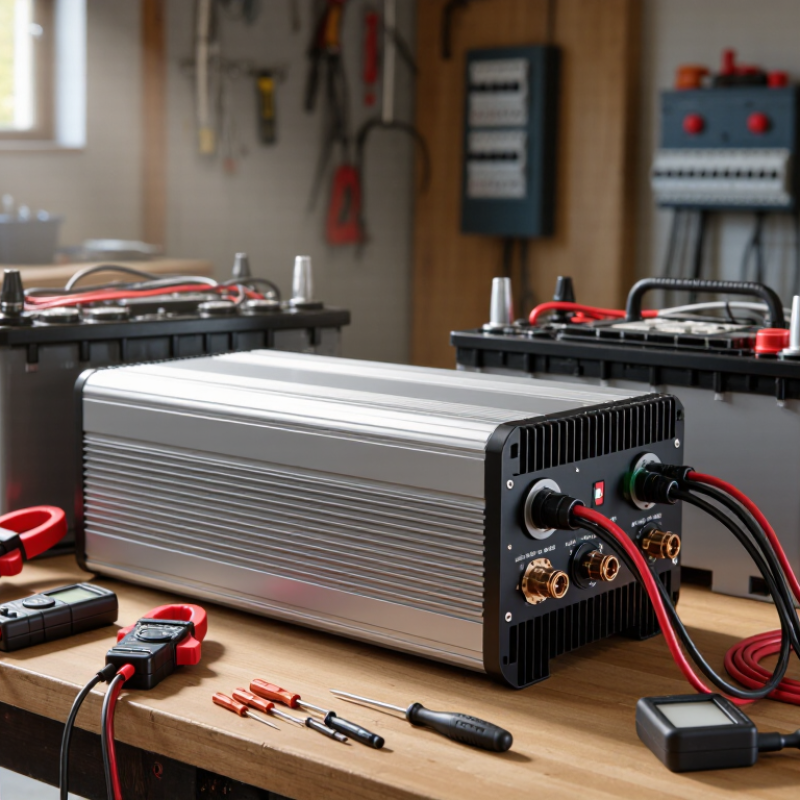

10 Tips for Choosing the Best 24V Inverter
Confirm UL 458 / IEC 62109 safety, protection, and installation compliance before selecting an inverter.
A 24V inverter draws approximately P ÷ V amperes from the battery at ideal efficiency.
At 90% efficiency, the required DC current is approximately P ÷ (24 × 0.90).
Actual installation values may be higher because of temperature, battery voltage variation, startup surges, and cable losses.
- Confirm that the product certification matches the intended application and installation environment.
- Check the applicable scope of UL 458 for recreational vehicle or mobile-housing power-converter applications.
- Check the applicable scope of IEC 62109-1 and IEC 62109-2 for power-converter and inverter safety.
- Verify continuous output power separately from short-duration peak or surge power.
- Calculate battery-side current at the lowest expected battery voltage, not only at nominal 24V.
- Confirm protection against overcurrent, short circuit, overload, overtemperature, and input undervoltage.
- Verify correct grounding, bonding, isolation, polarity, and residual-current protection requirements.
- Size DC cables, fuses, disconnects, and terminals for the expected current and installation length.
- Provide adequate ventilation and maintain the manufacturer’s required clearance around the inverter.
- Review installation instructions, certification markings, test documentation, and local electrical-code requirements.
