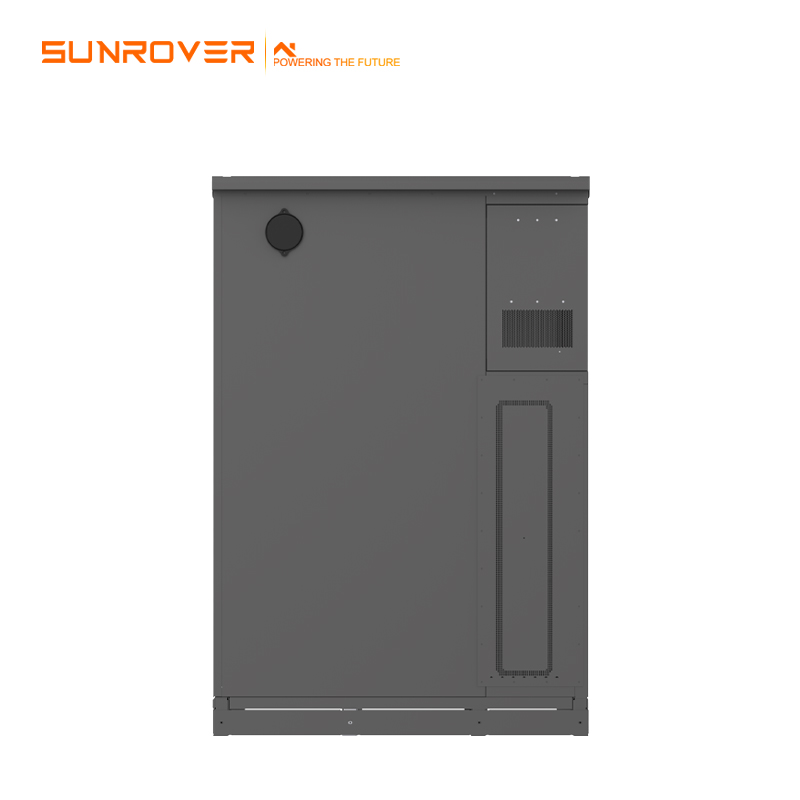

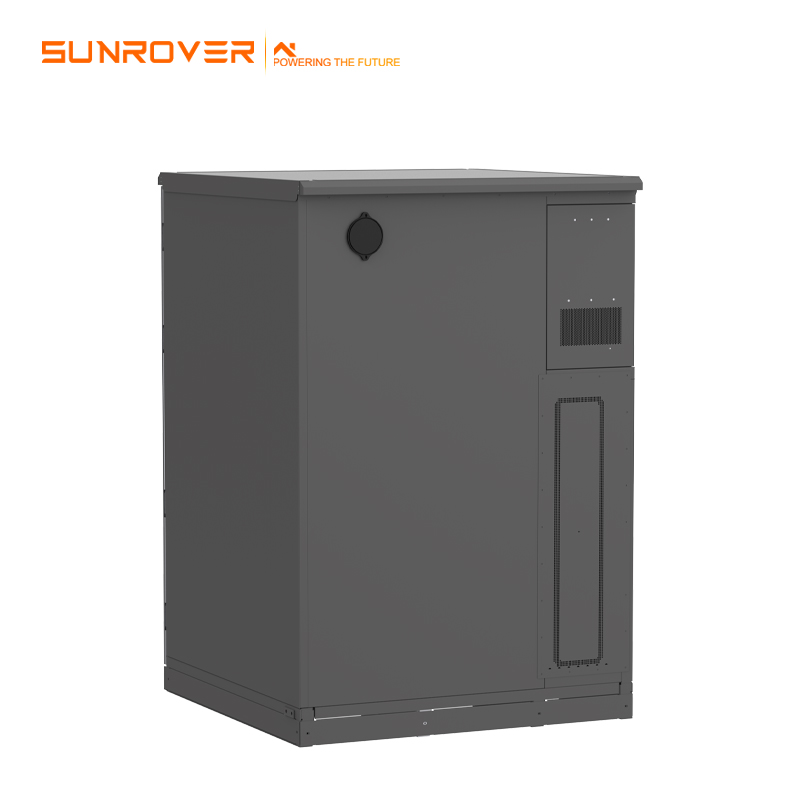

200kwh energy storage outdoor lithium battery cabinet
Product Description
Commercial and Industrial Energy Storage
Schools, factories, gas stations and other commercial buildings with high energy demands can maximize energy use
Energy independence and reduced grid power demand through solar PV and battery storage. iPotisEdge provides one-stop
Find solutions for commercial and industrial facilities to save on electricity bills, reduce the risk of rising energy prices, generate additional revenue from renewable energy and reduce their environmental impact.
Specification
| Item | Power 230 PLUS |
| Inverter | |
| Rated AC power | 100kW |
| Rated AC current | 144A |
| Rated AC voltage | 3W+PE,400Vac |
| THDI | <5%(Rated power) |
| THDU | <3%(Linear loads) |
| Battery | |
| Celltype | LiFePO4 |
| Nominal energy | 232.96kWh |
| Nominal capacity | 280Ah |
| Rated voltage | 832Vdc |
| Operating voltage range | 650Vdc~959Vdc |
| Maximum charge-discharge rate | 05P@25℃ |
| Cycle life | >8000@25℃@0.5C |
| System | |
| RS485,CAN,Ethernet | |
| Communication | |
| Cooling method | Liquid cooling |
| Firefighting | Pack+cabinet-level detection inhibition:Suppression medium:aerosol (standard)/perfluorohexanone(optional) |
| Operation Altitude | <4000m(More than 2000m derating) |
| Protection evel | IP54 |
| Dimensions(W*D*H) | |
| 1375*1350.5*2050 mm | |
| Weight | |
| =2.5T | |
| Safety Pregulation,EMC | EC62619/CE/UL1973/UL9540A/UN38.3/RoHS/IEC 61000-6-2:2019/EN IEC 61000- 6-4:2019/EN 62109-2:2011/EN 62109-1:2010/IEC 62109-2:2011/IEC 62109-1:201 |

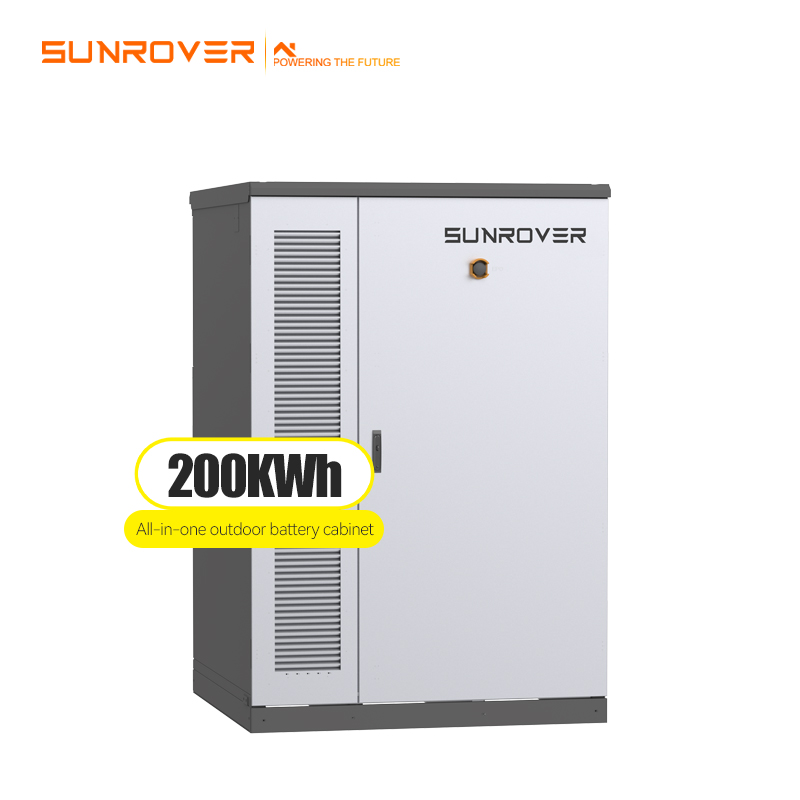

Product Display
LiFePO4 Cells
Grade A+ 3.2V LiFePO4 Cell 10000 Cycles
Modular Unit
Aluminum Shell LFP 5.12kWh with a Fan

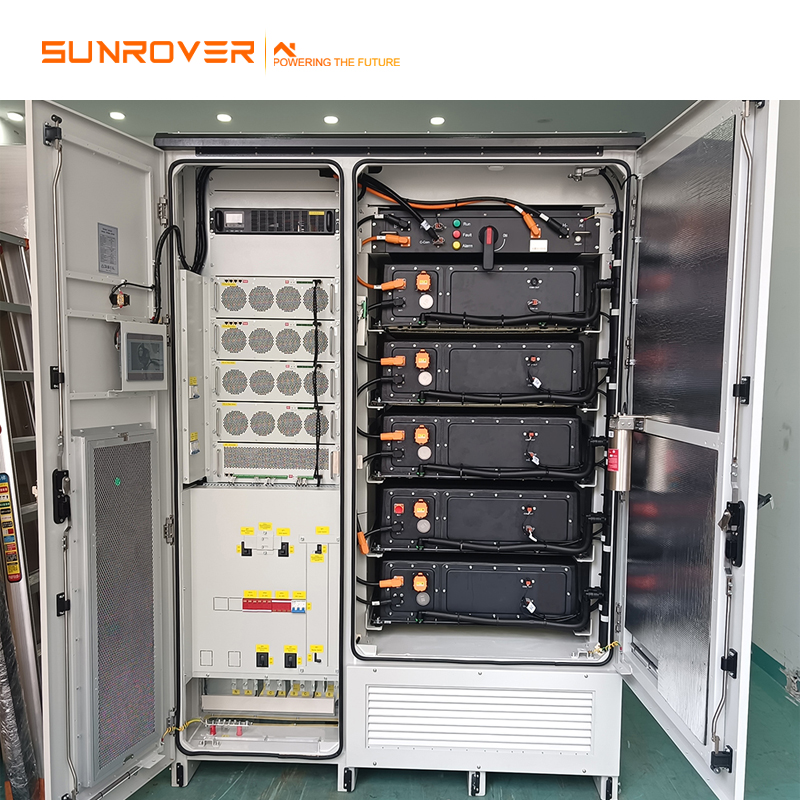

Structure
Compact Layout Samller Size
Fully Scalable
Multiple racks can be grouped to match specific energy storage needs

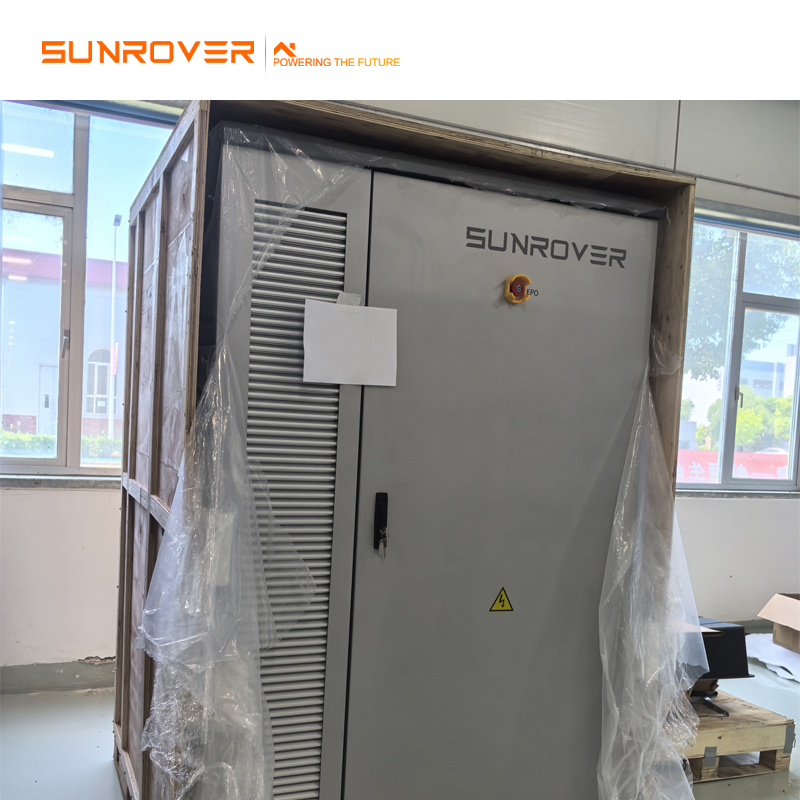

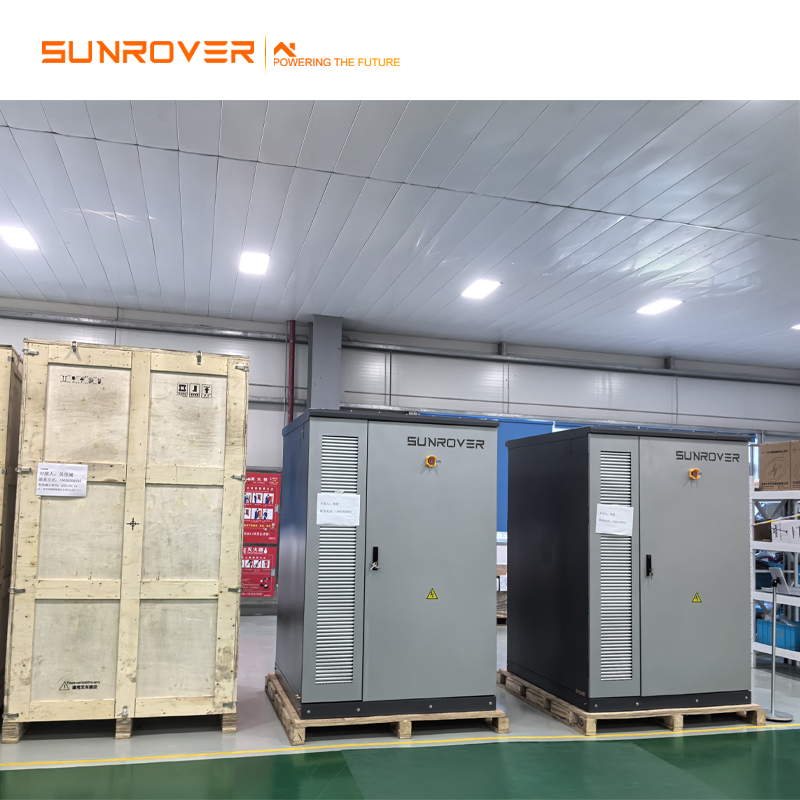

Packing & Delivery

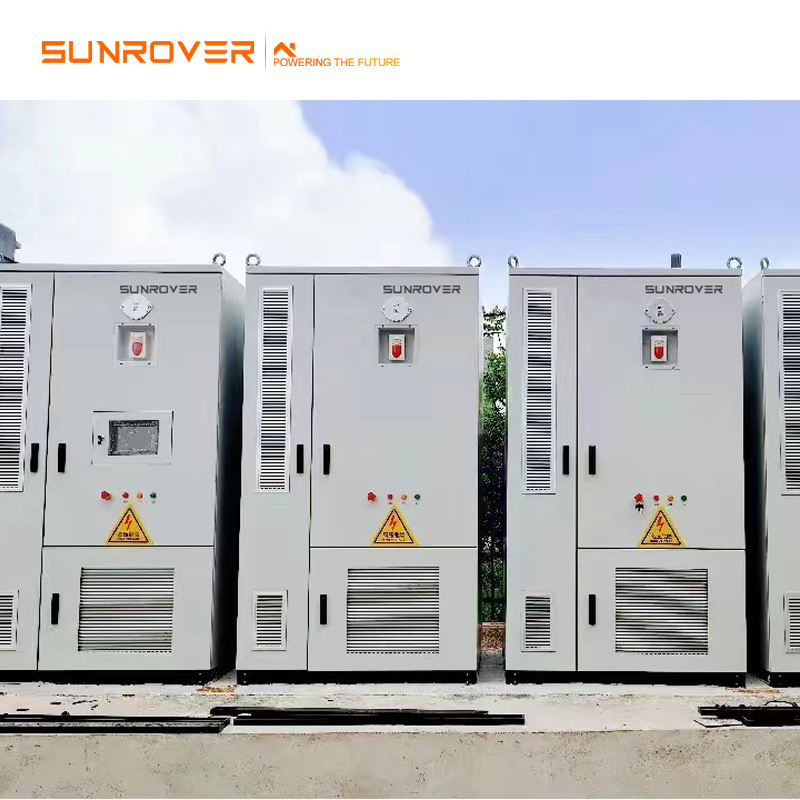

Project Cases
High-Efficiency Energy Storage: This 200kwh Lithium Ion Lifepo4 battery energy storage system offers a high-efficiency solution for industrial and commercial energy storage needs, providing a reliable and sustainable source of power.
Durable and Rugged Design: With a cycle life of 6500 and a working temperature range of -20-55°C, this system is designed to withstand extreme temperatures and harsh environments, ensuring optimal performance and longevity.
Advanced Communication Options: The system features multiple communication ports, including CAN/TCP/IP, RS485, and RS232, allowing for seamless integration with various systems and easy monitoring and control.
Scalable and Customizable: This system is available in 20ft and 40ft container sizes, making it ideal for a wide range of applications, from small to large-scale energy storage projects, and can be easily customized to meet specific user needs.
Long-Lasting Warranty and Protection: With a 10-year warranty and IP55 protection class, this system provides long-lasting protection against dust and water, ensuring reliable operation and minimizing maintenance costs.
